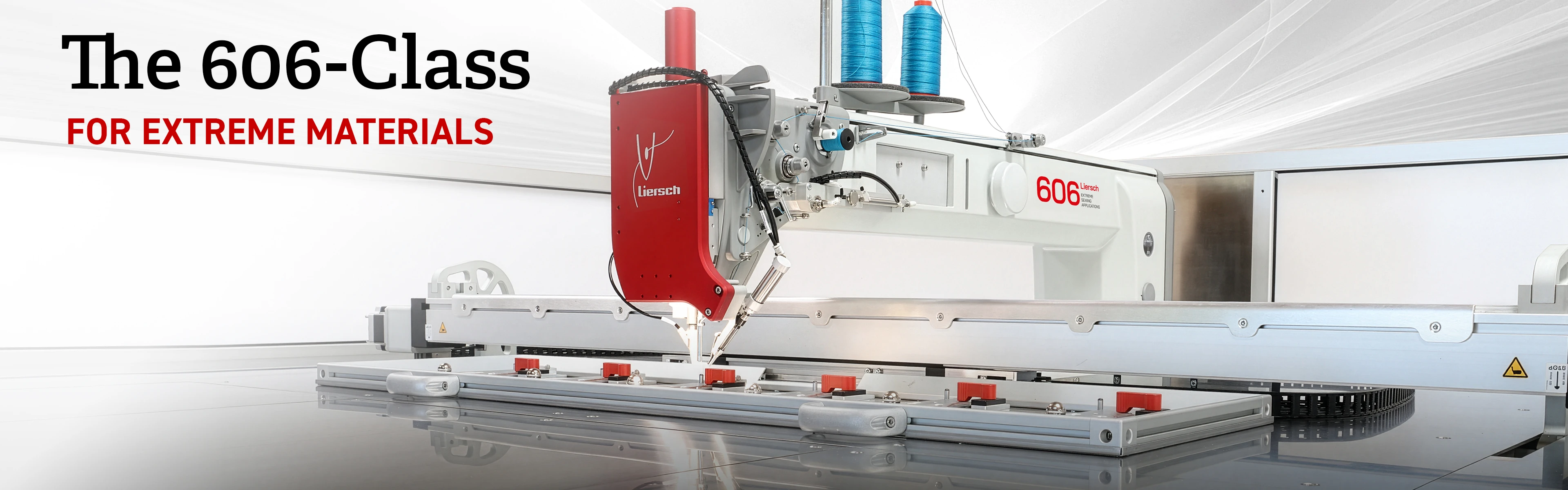

The Future of Innovative
Sewing Automation – Designed by Liersch
The Liersch 606 series is our answer to the most demanding technical textiles in industrial applications. Developed for the thickest and heaviest materials and capable of processing threads up to a strength of Nm 5/3, this system delivers reliable performance when conventional machines have long reached their limits.
With our proprietary Liersch software, we provide a modern control system that operates reliably and highly precise, at the same time remaining viable in the future. The sewing unit is fully compatible with automated production environments and communicates seamlessly with external systems.
For more than six years, the Liersch 606 series has represented uncompromising quality, high robustness, exceptional service life and ongoing optimization through continuous development. Each machine is 100% manufactured in Germany, ensuring maximum reliability and reproducible results in continuous industrial operation.
Liersch 606 Highlights – Peak Performance Features
Generous Presser Foot Lift Height
With its extended sewing areas and increased presser foot lift heights, the 606 series is ideally suited for processing bulky or heavy materials. The machine design facilitates the handling of large workpieces and enables precise operation even in complex sewing processes.

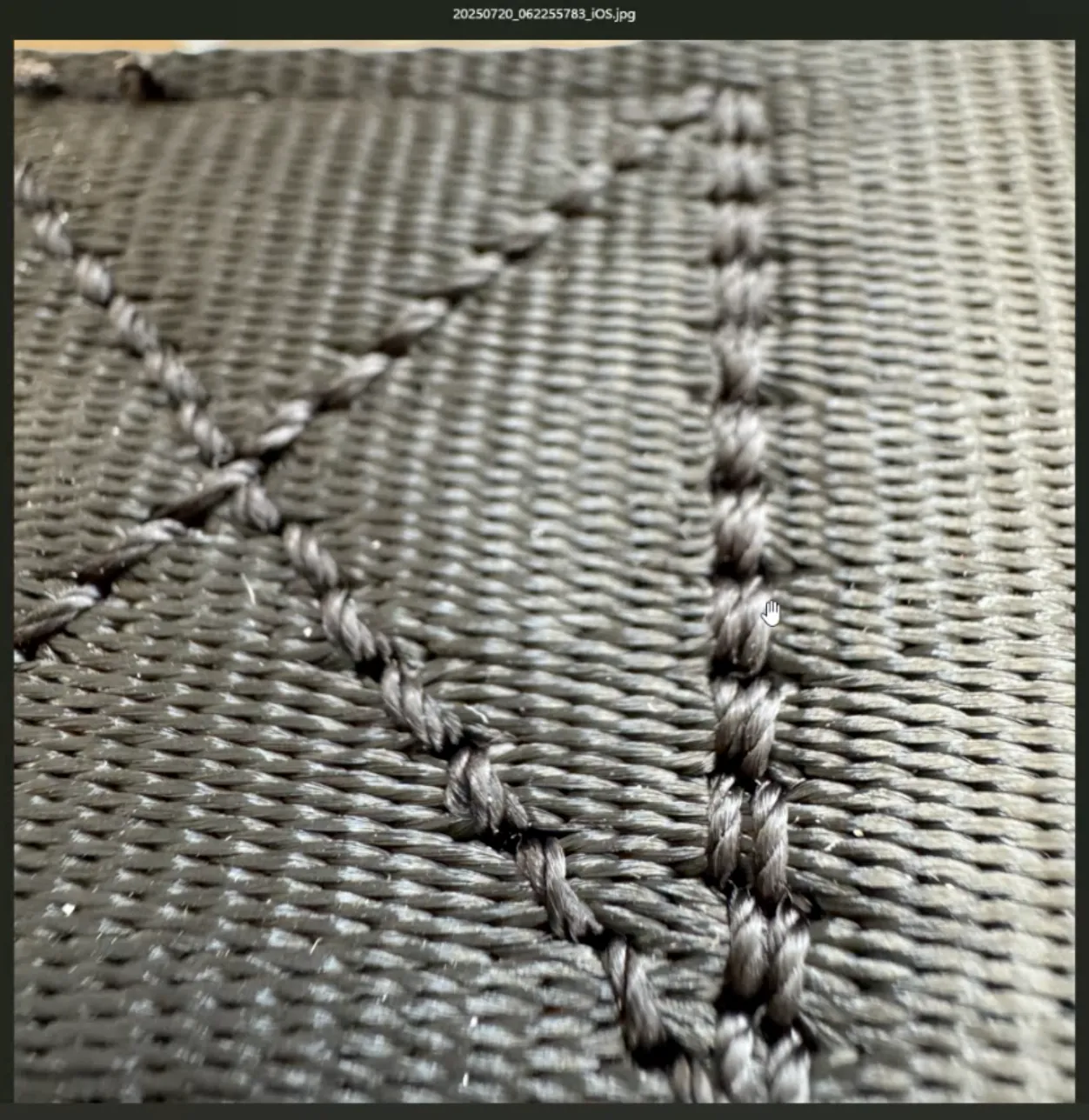

Top-Notch Stitch Patterns
The 606 series processes even the heaviest threads up to Nm 5/3 with maximum precision, delivering a clean and consistent stitch pattern. This makes it ideally suited for applications that require extreme durability and high-quality seam appearance.
Perfect Seam Beginnings
Thanks to top and bottom heat cutting in combination with the integrated thread suction system, the machine achieves exceptionally clean stitch starts. Even difficult or heavy threads are guided precisely, preventing irregular sewing starts and loose thread ends.
External Control System and Interfaces
With RS-232 and PLC connectivity, the 606 series can be seamlessly integrated into external control systems, robotics or automated production processes. This makes the series an ideal component in interconnected industrial and special-purpose machine environments.
Heavy-Duty Industrial Design
The entire series is engineered for demanding technical textiles and heavy-load applications. Robust modules, powerful drive systems and durable mechanical components ensure high stability and long service life in industrial operation.
Variant Diversity & Scalability
From compact S models to the large XL version with a sewing area of 2000 × 850 mm, the 606 series is available in a wide range of sizes and configurations. This allows the system to be precisely tailored to different products, components and production processes.
Choosing the Right Size: Sewing Areas Tailored to Match Your Application
The Liersch 606 series covers a wide range of sewing area sizes, offering the right configuration for almost any application. The more compact machine classes, 606 S and 606 M, are designed for sewing areas of 150 × 115 mm and 290 × 115 mm respectively, making them ideally suited for precise small-sized applications.
The 606 L offers a significantly expanded working area of 500 × 250 mm. This model provides ample space for larger workpieces and features an extra-high presser foot lift of up to 30 mm, allowing bulky or multi-layered materials to be positioned comfortably.
Engineered for especially large projects, the 606 XL is equipped with freely programmable X-Y axes and sewing areas of up to 2000 × 850 mm. This enables the processing of impressively large items and offers maximum flexibility in industrial production environments.

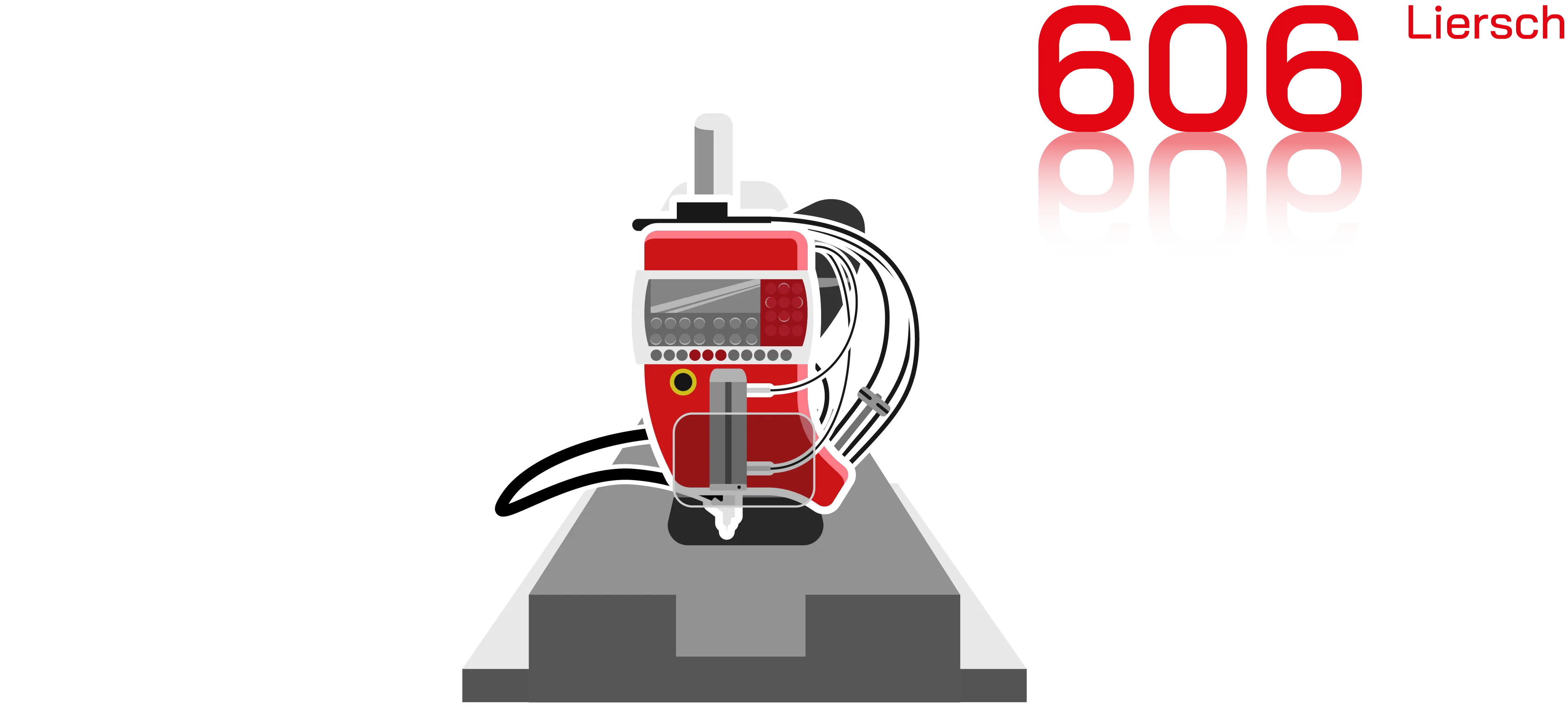

Liersch 606 S – Compact & Precise
The 606 S is the compact class within the product line. It is ideally suited for precise applications and designed to fit into constricted installation spaces. It is particularly well equipped for processing products with confined sewing areas that require high repetitive accuracy. Short travel paths, high mechanical stability and the optional Gen2 interface make it a perfect fit for automated small component-manufacturing and short production cycles.
Benefits of the S Class:
- Ideal for small to medium-sized components with short traverse distances
- Optional automatic bobbin change (Gen2) for high process reliability
- Extremely robust design with a compact footprint
Discover the Liersch 606 S

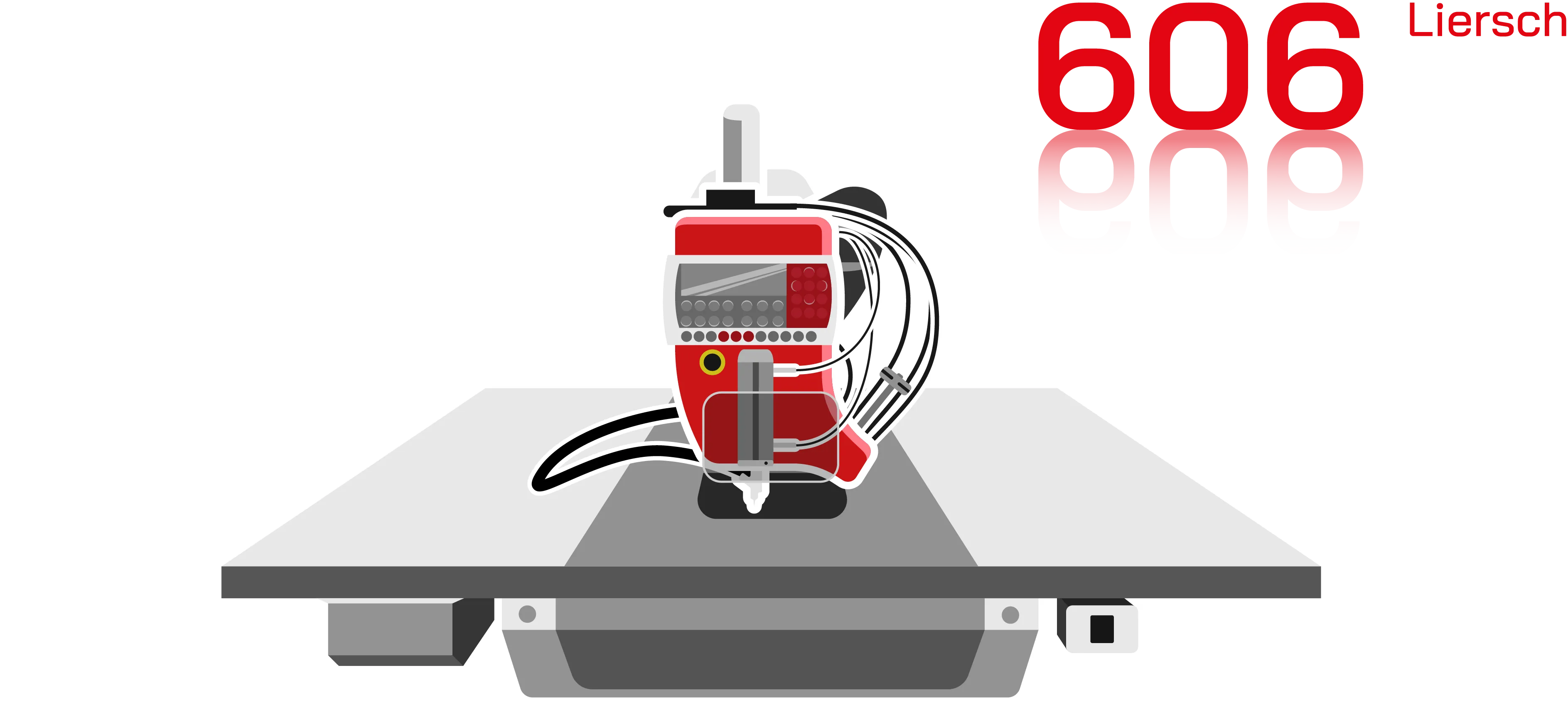

Liersch 606 M – Versatile All-Rounder
The 606 M represents the universal mid-size configuration within the series and offers a sewing area of 290 × 115 mm. It is ideally suited for compact products that require more freedom of movement than the S class provides. The machine reliably processes thick and multi-layer materials and delivers clean stitch quality even when using heavy threads. This makes it a versatile all-rounder for technical textiles, safety products and industrial series production.
Benefits of the M Class:
- Shorter traverse distances than the 606 L/XL, enabling higher operating speeds
- Universally employable for a wide range of technical products
- Precise positioning for medium-sized applications

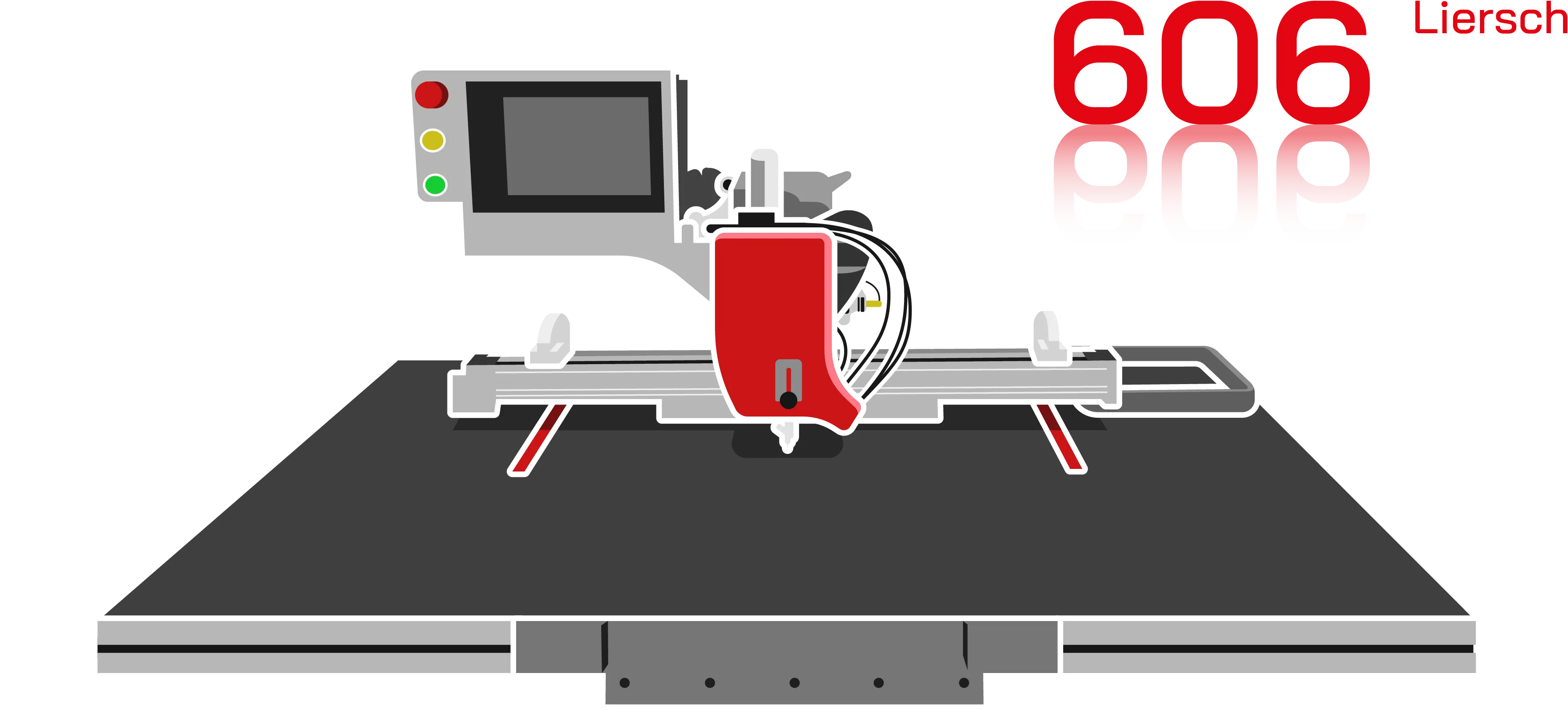

Liersch 606 L – Maximum Flexibility in Material Selection
The Liersch 606 L’s generous sewing area of 500 mm × 250 mm expands processing capabilities to especially large, bulky, or challenging products. The extended sewing field simplifies the handling of technically demanding parts – from belt systems and upholstery items to complex multi-component assemblies. With its robust stitch force, precise material feed, and the ability to handle thick threads, the L class is our heavy duty performer in Industrial environments.
Benefits of the L Class:
- deal for multi layer material combinations
- Available optionally as a complete workstation
- Perfect for belts, bags, upholstery, tarpaulins, foam elements and more

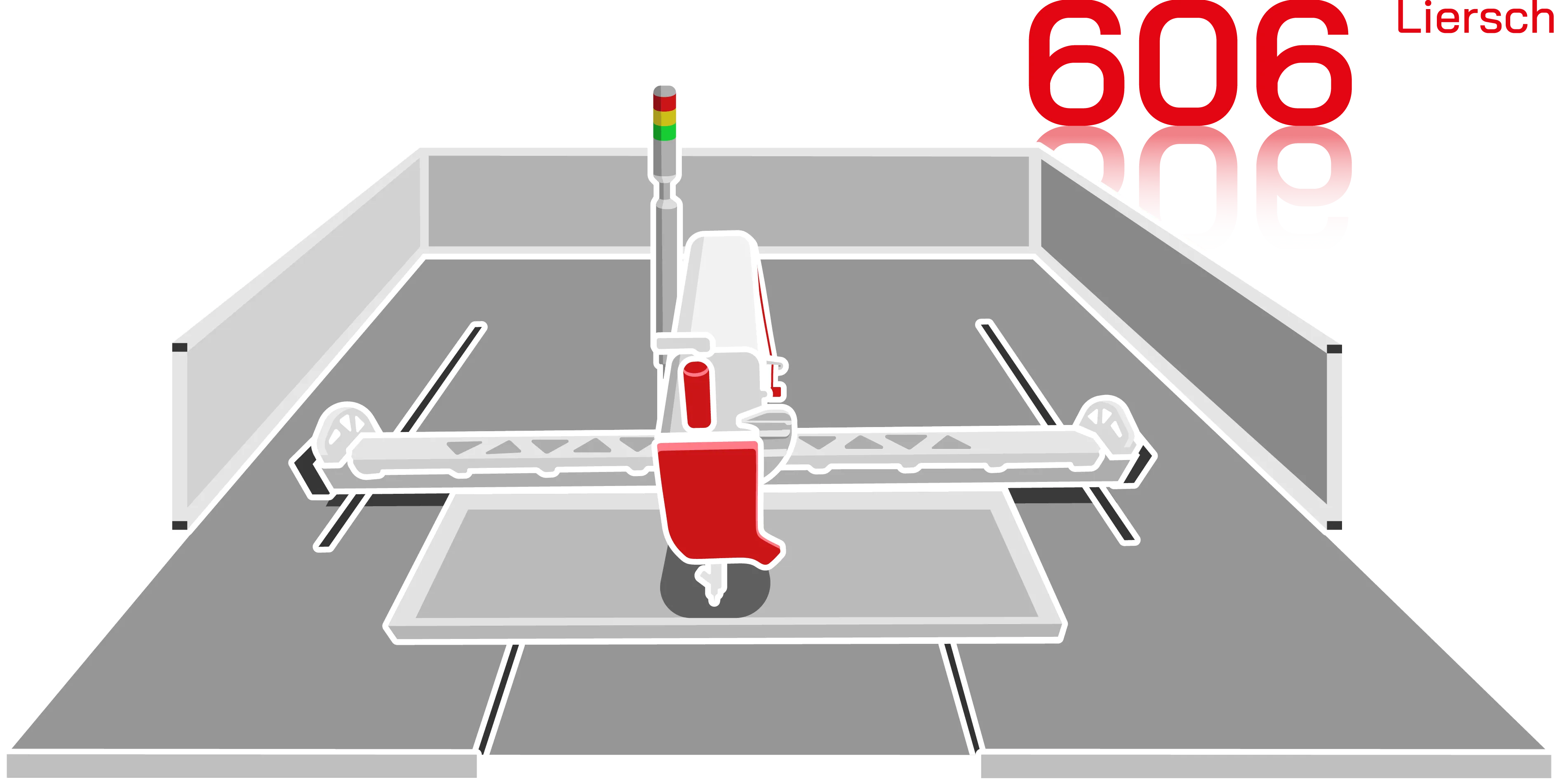

Liersch 606 XL – Extra Large & Highly Industrial
The 606 XL is the largest machine class of the series, featuring an impressive sewing area of 2000 mm × 850 mm. Designed for oversized components and extended production paths, it excels in technical textiles, special-purpose applications, and large-scale industrial manufacturing. The expansive workspace allows for long seams, complex geometries, and heavy-weight assemblies – precise, powerful, and process-stable.
Benefits of the XL Class:
- Optimized for long seams and intricate contours
- Maximum adaptability for custom-tailored solutions
- Extra-large sewing area: 2000 × 850 mm
Hot Thread Cutting for Maximum Seam Quality
The hot thread cutter is a thermal cutting system that doesn’t separate the thread mechanically but instead melts it cleanly using heat. This results in sealed, fray-free thread ends – essential when working with technical threads and demanding materials. At the same time, the heat cut ensures the thread is cleanly fixed at the start, allowing the sewing process to begin without residual thread disruptions. The result: a reliable, clean production flow and visually perfect seam transitions.

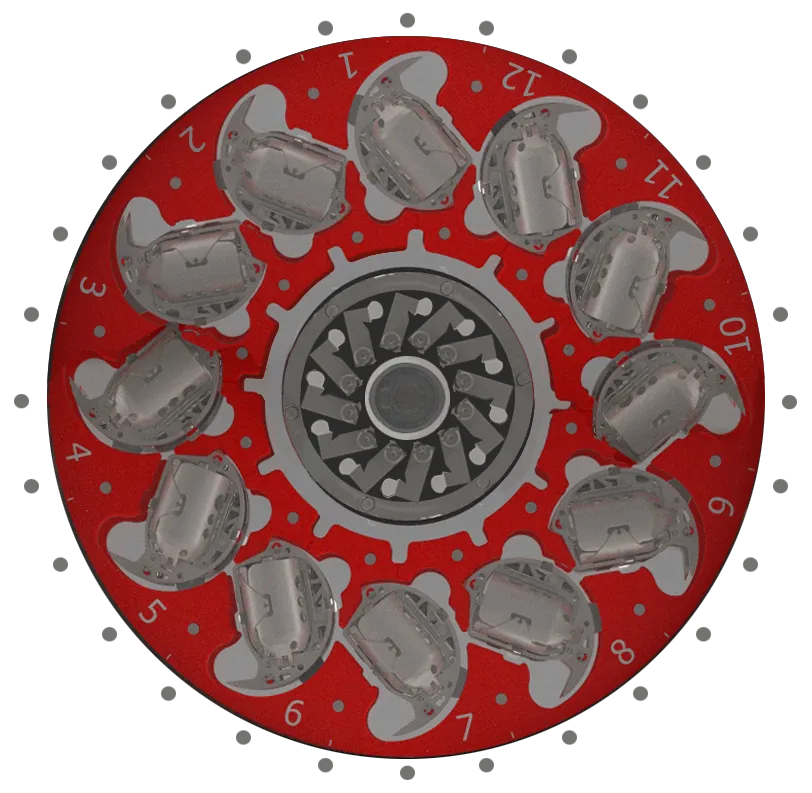

Liersch ASC – Automatic Shuttle Changer
The automatic shuttle changer is a newly developed system that significantly increases the autonomy, process stability, and productivity of barrel hook sewing automats. It performs a fully automatic replacement of the complete shuttle without any operator intervention, while ensuring consistently high seam quality throughout the entire production process.
Benefits:
- Magazine with 12 shuttle slots for long production cycles without manual intervention
- Automatic changeover: when the lower thread is depleted, the hook ring opens, the complete barrel hook shuttle is removed, and safely stored in the magazine
- The system turns the magazine, automatically detecting the next fully loaded shuttle and positions it for insertion
- Before installing the new shuttle, the lower thread is cut to the exact required length – ensuring identical seam quality without the need for an additional test piece
Fields of Application
Automotive
Read more
Every seam counts when sewing seat belts: belt loops, buckle attachments and retractor connections are load-bearing and must hold in every crash. The Liersch 606 processes multi-layer webbing with its barrel shuttle and strong thread pull, sews programmed seam patterns with repeat accuracy and documents every seam with the TMS. With ASC and hot cutting, belt production runs almost autonomously – proven on our test stand in three-shift continuous operation.
Mattresses & Upholstery
Read more
Mattresses and upholstered furniture need strong, clean seams through thick layers: carrying handles, labels, borders and cover reinforcements. The large presser foot lift of the 606 accommodates high material build-ups, and the programmed sewing field ensures identical handle and label positions on every mattress – at volumes that can hardly be sewn economically by hand.
Horse Saddles
Read more
Saddlery work such as girth straps, stirrup leathers and saddle girths joins thick leather with webbing – load-bearing and visible at the same time. The 606 sews these connections with a clean stitch appearance and exactly reproducible seam patterns, so that even small series are produced in consistent quality without the variation of hand sewing.
Parachutes
Read more
Parachute harnesses, risers and connecting lines are personal safety in the literal sense. The Liersch 606 sews webbing and technical fabrics with a defined stitch count and thread tension; TMS thread monitoring detects skipped stitches and false seams during sewing and provides the documentation that parachute system manufacturers need for certification and traceability.
Technical Textiles
Read more
Technical textiles cover applications in which material and seam transmit forces: lifting slings and lashing straps, big bags, tarpaulins, filter elements, protective equipment. The 606 processes heavy fabrics, coated materials and multi-layer build-ups with its barrel shuttle; sewing field sizes from S to XL and customer-specific clamping systems adapt the automat to the part.
Harnesses & Rescue Equipment
Read more
Climbing harnesses, fall-arrest harnesses (PPE against falls from height), rescue slings and recovery straps are subject to strict standards and testing obligations. With the 606, the load-bearing seams are sewn to programme, with constant thread length and – in combination with TMS – fully documented. This makes it possible to prove for every harness that the safety-relevant seam was produced correctly.
Maximum Reliability in Continuous Operation
The Liersch 606 series is consistently designed for continuous, multi-layer production environments. Its exceptional robustness is not incidental, but the result of intensive testing under production-like conditions. To achieve this, Liersch has developed its own highly advanced test stand, pushing machines to their absolute load limits. Not only the mechanical components, but also the complete software architecture and proprietary sensor technology are developed in-house. This provides a decisive advantage: loads, material fatigue and long-term performance can be precisely measured, analysed and optimized before the machines are deployed in industrial production.
Optional Upgrade with
Liersch TMS
Our intelligent Thread Monitoring System (TMS) delivers reliable and precise control of your sewing processes. The system continuously monitors thread flow and stitch formation, detecting deviations in real time during the production process. As a result, skipped stitches, thread breakage, and other quality impairments are immediately flagged and the cause is displayed directly to the operator. TMS ensure that every seam meets the high quality standards of your production process — regardless of operator or batch size. This increases process reliability and creates full transparency throughout the entire sewing operation. For further technical details and application options, please visit our TMS product page.
Five frequently asked questions
Which 606 Model is the Right One for Your Application? Please Contact Us for Your Personal Consultation!
We are happy to support you in evaluating your materials and production requirements to identify the machine solution best suited to your needs.
